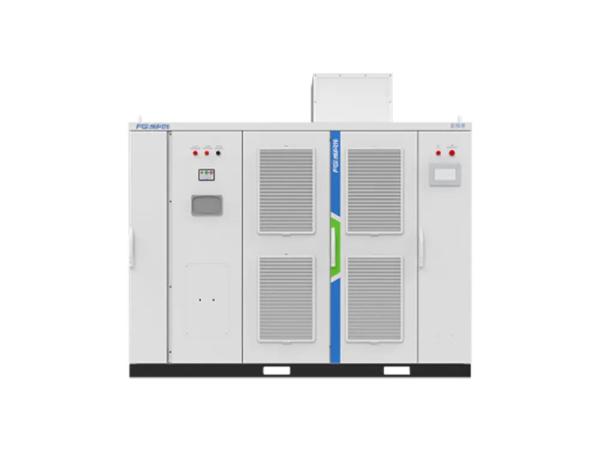

Product Features:
Based on two / four quadrant synchronous (including permanent
magnet synchronous motor) / asynchronous motor platform design and
unit sealing design, the whole machine adopts modular design idea
and high production efficiency.
Competitive advantages:
Modular design of control system, small harmonic, accurate speed regulation, good sealing of power unit and strong environmental adaptability.
Load type:
Fan and water pump load; Hoist and belt conveyor loads.
Table JD-BP37-F Series (6kV) Specifications and Dimensions (Excluding Switchgear / Incoming cabinet)
Model | Adaptive motor power | Dimension and weight | |||
Width (mm) | Depth (mm) | Height (mm) | Weight (kg) | ||
JD-BP37-225F~JD-BP37-560F | 225kW/6kV~560kW/6kV | 1700 | 1500 | 1900 | 1900~2410 |
JD-BP37-630F~JD-BP37-1120F | 630kW/6kV~1120kW/6kV | 2200 | 1700 | 2120 | 3250~4000 |
JD-BP37-1250F~JD-BP37-1400F | 1250kW/6kV~1400kW/6kV | 3200 | 1700 | 2420 | 4950~5600 |
JD-BP37-1600F~JD-BP37-2800F | 1600kW/6kV~2800kW/6kV | 3500 | 1700 | 2420 | 6900~7300 |
JD-BP37-3250F | 3250kW/6kV | 5850 | 1700 | 2420 | 11750 |
JD-BP37-4000F | 4000kW/6kV | 6450 | 1700 | 2420 | 11800 |
JD-BP37-4500F~JD-BP37-5000F | 4500kW/6kV~5000kW/6kV | 6450 | 1700 | 2620 | 12950~13600 |
Table JD-BP38-F Series (10kV) Specifications and Dimensions (Excluding Switchgear / Incoming cabinet)
Model | Adaptive motor power | Dimension and weight | |||
Width (mm) | Depth (mm) | Height (mm) | Weight (kg) | ||
JD-BP38-250F~JD-BP38-1000F | 250kW/10kV~1000kW/10kV | 1750 | 1500 | 1900 | 2160~3100 |
JD-BP38-1120F~JD-BP38-2000F | 1120kW/10kV~2000kW/10kV | 2800 | 1700 | 2120 | 4320~5720 |
JD-BP38-2250F~JD-BP38-2500F | 2250kW/10kV~2500kW/10kV | 4200 | 1700 | 2420 | 9380 |
JD-BP38-2800F~JD-BP38-4500F | 2800kW/10kV~4500kW/10kV | 4500 | 1700 | 2420 | 10900~12500 |
JD-BP38-5000F~JD-BP38-5600F | 5000kW/10kV~5600kW/10kV | 7900 | 1700 | 2420 | 14000~16500 |
JD-BP38-5900F~JD-BP38-6800F | 5900kW/10kV~6800kW/10kV | 7900 | 1800 | 2620 | 17600~20350 |
JD-BP38-8000F~JD-BP38-9000F | 8000kW/10kV~9000kW/10kV | 8100 | 1800 | 2720 | 21500~22800 |
Table JD-BP37-T series(6kV)Specifications and Dimensions (Excluding Switchgear / Incoming cabinet)
Model | Adaptive motor power | Dimension and weight | |||
Width (mm) | Depth (mm) | Height (mm) | Weight (kg) | ||
JD-BP37-280T~JD-BP37-1000T | 280kW/6kV~1000kW/6kV | 2200 | 1700 | 2120 | 2400~4430 |
JD-BP37-1120T~JD-BP37-1400T | 1120kW/6kV~1400kW/6kV | 3200 | 1700 | 2420 | 5520~5600 |
JD-BP37-1600T~JD-BP37-2000T | 1600kW/6kV~2000kW/6kV | 3500 | 1700 | 2420 | 5850~6090 |
JD-BP37-2500T | 2500kW/6kV | 5550 | 1700 | 2420 | 10000 |
Table JD-BP38-T Series(10kV)Specifications and Dimensions (Excluding Switchgear / Incoming cabinet)
Model | Adaptive motor power | Dimension and weight | |||
Width (mm) | Depth (mm) | Height (mm) | Weight (kg) | ||
JD-BP38-250T~JD-BP38-1600T | 250kW/10kV~1600kW/10kV | 2800 | 1700 | 2120 | 3500~6450 |
JD-BP38-1800T~JD-BP38-2500T | 1800kW/10kV~2500kW/10kV | 4200 | 1700 | 2420 | 9250~9400 |
JD-BP38-2800T~JD-BP38-3250T | 2800kW/10kV~3250kW/10kV | 4500 | 1700 | 2420 | 9900~9950 |
Note:
1. The above dimensions are for reference only. Please refer to the
project drawings and physical objects for details.
2. Due to product upgrading, the contents of this page will be
updated regularly. If you need to buy our products, please refer to
the latest product manual.
![]() |
